For Welding Austenitic Stainless Steels Containing A Nominal 19Cr and 10Ni

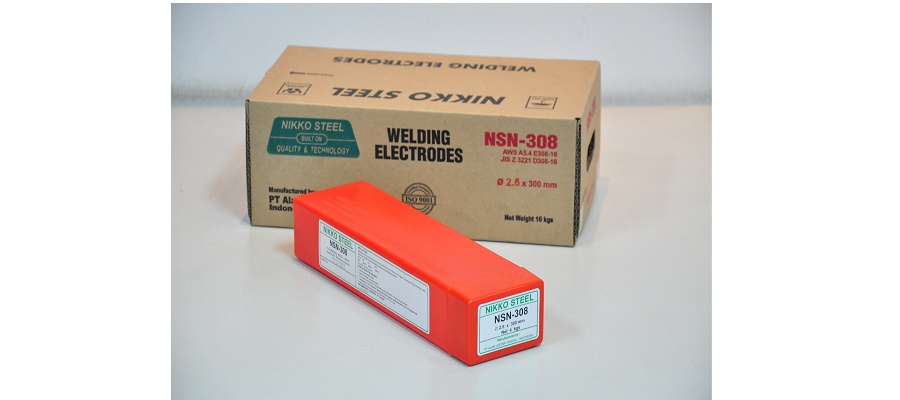

NSN-308


CLASSIFICATION

AWS A5.4 E308-16 | EN ISO 3581-A E 19 9 R | JIS Z 3221 D308-16

PRODUCT DESCRIPTION

A metallurgically advanced rutile based flux formulated with balanced additions of chemically basic, amphoteric and acid minerals, together with small alloy additions to compensate for arc losses. The flux is concentrically extruded onto a fully alloyed core wire and bound by a blend of silicates that assures both coating strength and resistance to subsequent moisture absorption.

WELDING FEATURES OF THE ELECTRODE

This unique flux formulation ensures excellent arc stability, ease of initial arc strike and re-strike minimal spatter on AC and virtually none on DC+. The resultant weld seams are smooth, evenly rippled and free from undercut while slag detachability is excellent. Metal recovery is some 103% with respect to core wire weight.

APPLICATIONS AND MATERIALS TO BE WELDED

Applications for the electrode are to be found in the Chemical, Petro-Chemical and Cryogenic Processing and Storage Industries as well as the Food, Brewery and Pharmaceutical Industries using the following materials:

ASTM 304 CF3 CF8

UNS S30403 S30400 S30453

Plus ASTM 301, 302 and 303

WELDING AMPERAGE AC and DC


OTHER DATA

Electrodes that have become damp should be re-dried at 150oC for 1 hour
