A Versatile Rutile Medium Cellulose-Plus Content Mild Steel Electrode For All Positional Welding But Particularly Advantageous For Fillet Welding

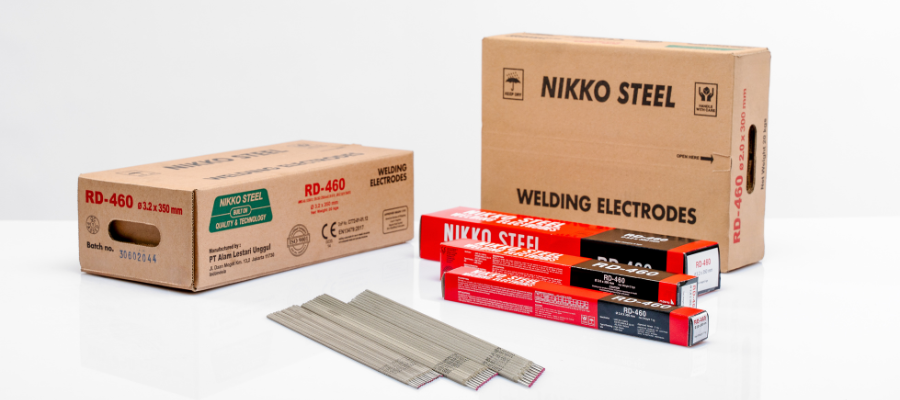

RD-460
CLASSIFICATION
AWS A5.1 E6013 | EN ISO 2560-A E 35 0 R | JIS Z 3211 D4313
PRODUCT DESCRIPTION
The design emphasis of the flux is engineered to produce a fluid but quick freezing slag so facilitating all positional welding (vertical down only for 3.2mm). The balanced rutile, cellulosic flux containing both alloying and deoxidizing elements is extruded on to a mild steel wire with a blend of silicates that ensures coating strength and stability
WELDING FEATURES OF THE ELECTRODE
The electrode welds with a smooth stable arc on both AC and DC. Spatter is minimal. Weld seams are smooth, bright and evenly rippled. Initial arc strike and re-strike are instant. For flat welding use amperages towards the top end and for vertical up and overhead towards the bottom of range. Slag detachability is excellent and metal recovery is up to 80% with respect to weight of core wire.
APPLICATIONS AND MATERIALS TO BE WELDED
All positional welding (vertical down only for 3.2mm) but used to particular advantage for fillet welding of the following and related steel specifications: Mild and medium carbon-manganese steels up to 15 mm thick with a UTS of 500 N/mm2 max. Typical grades : BS 1449 plate and sheet, BS 4360 grades 43A and 43C, Lloyds A & D ship steel BS 4360 grade 50B Lloyds grades AH and DH, BS 3059 and BS 3601 grade 320-410 API 5L A-B and X42.
WELDING AMPERAGE AC and DC
OTHER DATA
Electrodes that have become damp should be re-dried at 110oC for 1 hour
APPROVED BY
LR| ABS| NK| BKI – Grade 2
