BASIC LOW HYDROGEN ELECTRODE FOR WELDING STRUCTURAL STEELS WITH HIGHER SU B-ZERO TOUGHNESS PROPERTIES

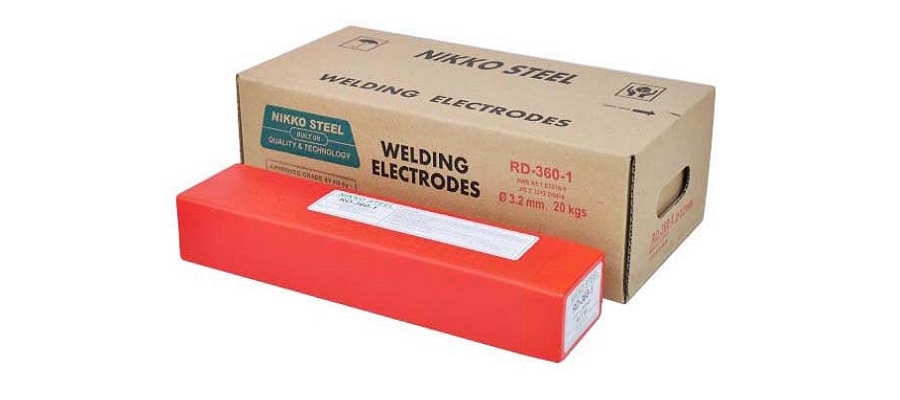

RD-360-1
CLASSIFICATION
AWS A5.1 E7016-1 | EN ISO 2560-A E 46 4 B | JIS Z 3212 D5016
PRODUCT DESCRIPTION
The design emphasis of the chemically basic flux is engineered to ensure the optimum weld metal properties demanded by the specification are fully met. The basic flux containing the appropriate alloying elements but minimal iron powder, is extruded onto a high purity ferritic core wire and bound with a blend of silicates that ensure both coating strength and a coating resistant to subsequent moisture absorption.
WELDING FEATURES OF THE ELECTRODE
The chemical nature of the flux together with its controlled coating factor allows the electrode to be used at relatively low amps. This factor together with the fairly fluid but quick freezing slag facilitate vertical up welding including controlled penetration root runs. Overall the arc is very stable, slag detachability is good, fillet welds are slightly convex and metal recovery is some 98% with respect to weight of the core wire
APPLICATIONS AND MATERIALS TO BE WELDED
Suitable for all grades of C-Mn structural steels. However, it is used to best advantage on fully deoxidised C-Mn steels when high toughness values are specified down to -45 °C. These toughness properties are maintained even after extended PWHT making it ideal for pressure vessel work. The low weld Si and high Mn to Si ratio ensure maximum resistance to solidification cracking on thick restrained sections.
WELDING AMPERAGE AC and DC
OTHER DATA
Electrodes that have become damp should be re-dried at 150oC for 1 hour
APPROVED BY
LR – Grade 4Y H5
